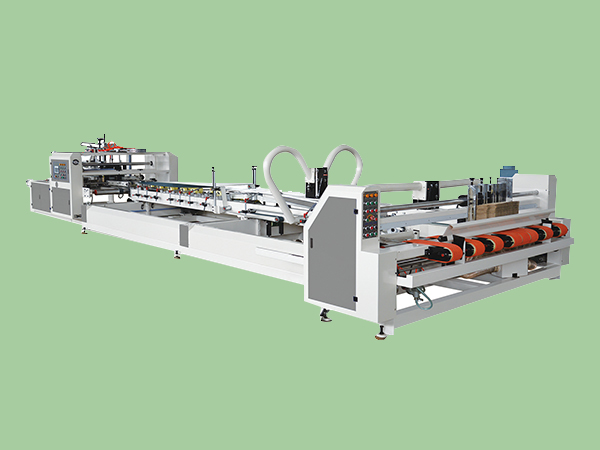

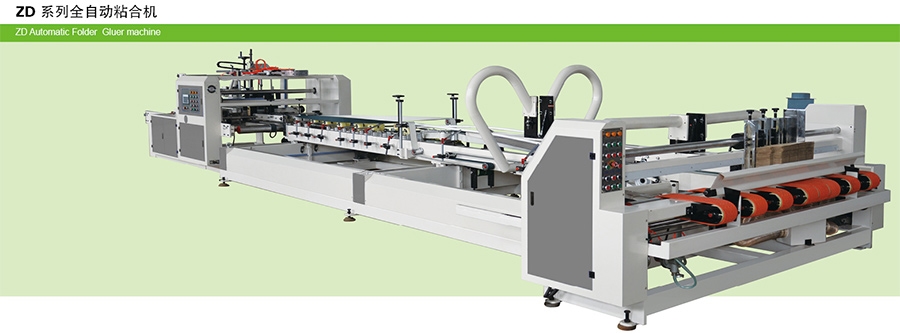

产品名称:ZD系列全自动粘合机

发布日期:2019-10-23

点击数:1422

询价:点击产品询价

二维码:

简述:

产品详情


特点   Characteristic:

PLC程序控制数据调整,触摸屏输入纸箱规格。

墙板采用40mm铸铁墙板。

◎ 送纸部采用印刷机式齿轮传动,比传统式链轮,链条传动更平稳,噪音更小,送纸更及时。

◎ Control data adjustment by PLC Programme ,enter the carton box size into the Touch Screen.

◎ The machine baffle used the 40mm thickness cast iron .

◎ Feeding unit used the printing machine model gear transmission,more steady than tradition model chain

◎ wheel and chain transmission.Less noise ,feeling more precision.

整机主要电器成件使用品牌如下:

No.

成件名称

品牌

  1

触摸屏

西门子

2

PLC

西门子

3

变频器

西门子

4

中间继电器

西门子

5

光电开关

沪工

6

开关电源

明纬

7

热过载继电器

西门子

8

断路器

西门子

9

行程开关

正泰

10

接触器

西门子

11

按钮

西门子


Main electric parts as follows:

No.

Name

Band

1

Touching screen

SIEMENS

2

PLC

SIEMENS

3

Inverter

SIEMENS

4

Relay

SIEMENS

5

Photoswitch

Hugong,China

6

Switch power

Meanwell,Taiwan

7

Thermal overload relay

SIEMENS

8

Breaker

SIEMENS

9

Travel switch

Chint,China

10

Contactor

SIEMENS

11

Button

SIEMENS



制作尺寸      BLANK SIZE



最大/Mox.

最小/Min.

W

450mm

180mm

L

650mm

270mm

D2

900mm

300mm

G

40mm

35mm

性能  Function:

本机型实现了涂胶部,送纸部和折叠部,全电脑式调整,只需在触摸屏上输入三个数据(长、宽、高的尺寸),机器自动调整到位。

本机并设有单独电脑数控调整,可对单个部分单独调整;同时还设有调整按钮,可满足各种操作习惯。

This machine can achieve whole computer adjustment for gluer unit ,feeling unit and folder unit, just enter three data on the Touch Screen (Length,Width,Height size),the machine can automatic adjustment to the exact position.

This machine was also setting the single computer NC adjustment ,it can adjustment for any single position ;At same  time ,it was also setting the adjustment button ,which can meet any different operation habit .

技术参数 Specification:

型号            Model

 ZD-2400

ZD-2500

最大过纸     Max.Cardboard(mm)

1200×2400

1200×2500

最小过纸     Min.Cardboard(mm)

300×900

300×900

外形尺寸     Dimensions

L11000×W3000×H1600

L12500×W3200×H1600

整机重量     Total weight

5500kg

6500kg

电源要求     Power Required

12kw 380V 3Phase 50HZ

12kw 380V 3Phase 50HZ

适应纸板厚度  Paperboard thickness

三层、五层纸板  3 or 5 layer paperboard

控制方式      Control

PLC 触摸屏控制  PLC & TOUCH SCREEN
